Single Tier Gantry Hot Cupboard Combo – 1800



this is the nordstar delivery time


Part Number: STC1800

Cupboard Sizing
Length: 1800mm                    Depth: 700mm                  Height: 900mm

Gantry Sizing
Length: 1800mm                    Depth: 300mm                  Height: 350mm

Bulbs: 5                                  Plugs: 2 x 13 AMP            Heat Range: 30 – 110C

CONSTRUCTION: 430 grade, 18 gauge chassis, Fully Tig welded, laser cut light control panel, box section frame, 16 gauge 304 top, fully insulated chassis and doors, lift
out sliding doors.

ELECTRICAL SPEC: 240v 1pH, 1 x 13amp plug , 3000w element 1 x switched variable thermostat, 1 x heating light, 1 x temperature achieved light, 1 x light indicated on
off switch, 3m of cable.

WARRANTY: 1 Year UK Warranty, All Parts Covered for 12 months, Labour and call out covered for 3 months at maximum of £60. For Technical information or
trouble shooting

SKU: STC1800 Category:


The Nordstar Single Tier Combo 1800

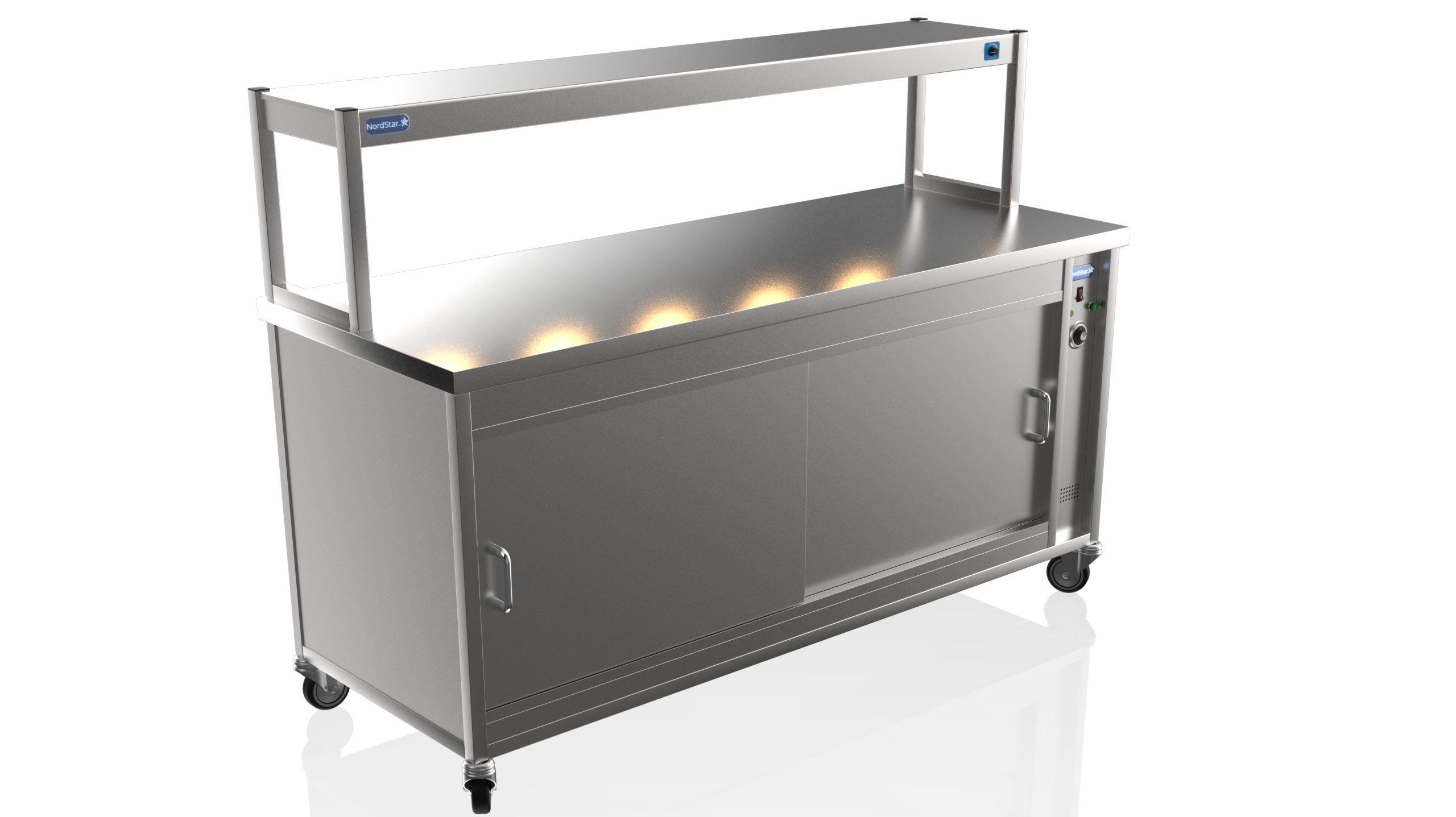

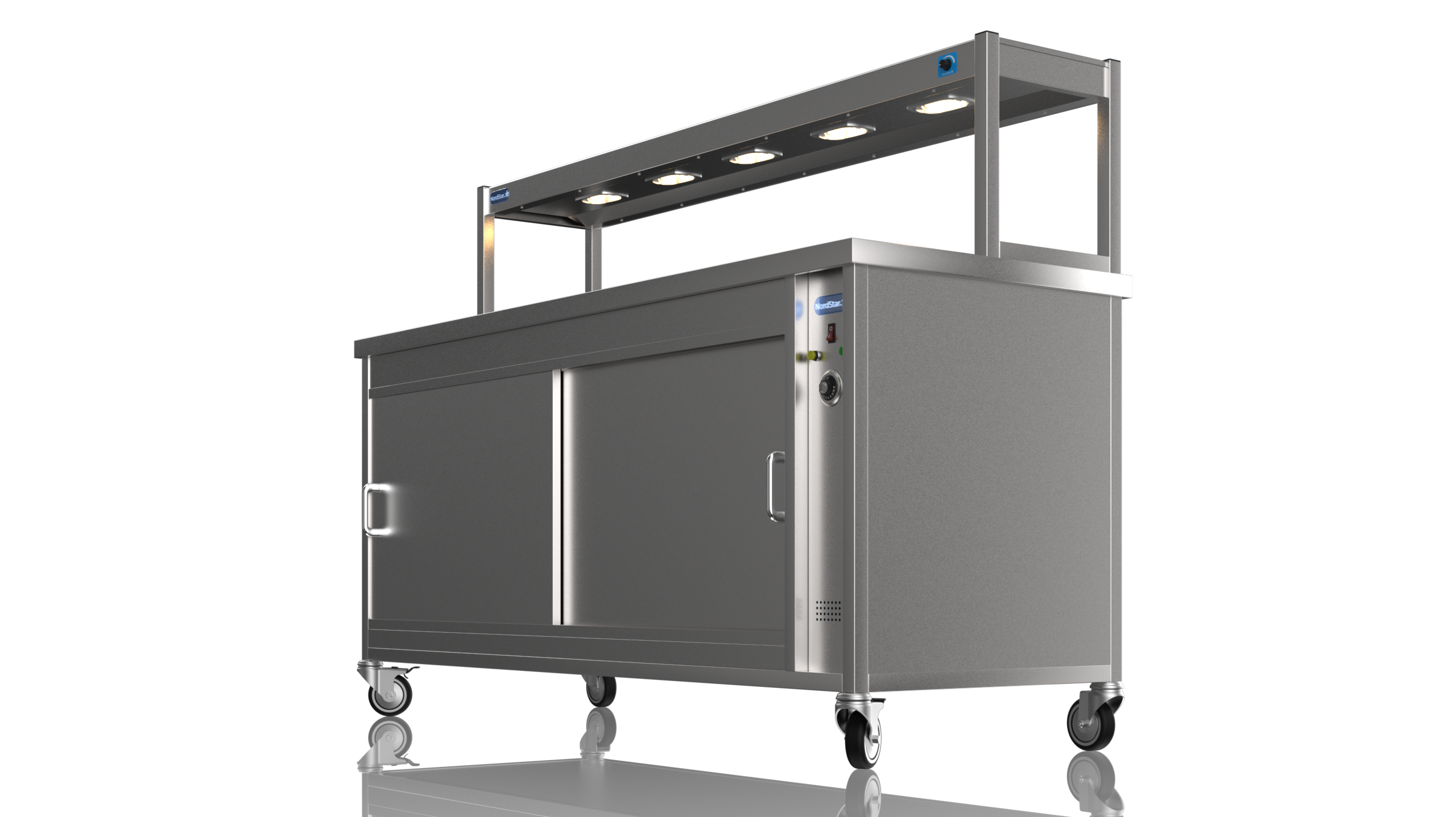

Nord Star Hot Cupboard with Single Tier Gantry

Hot Cupboard is a high quality, reliable appliance, ideal for care homes, restaurants and canteens. Constructed with easy to clean stainless steel, contents are kept at warm and hygienic temperatures due to its fully insulated panels,  easily accessible using our own sliding door system. Perfect for confined spaces such as hallways and corridors. This Combination of Hot Cupboard and Gantry is commonly used as a Chefs Pass/ Chefs Hot Pass

Hot Cupboard Features a large holding capacity, indicator lights so see when the cupboard is up to temperature, easy function thermostat and on/off button

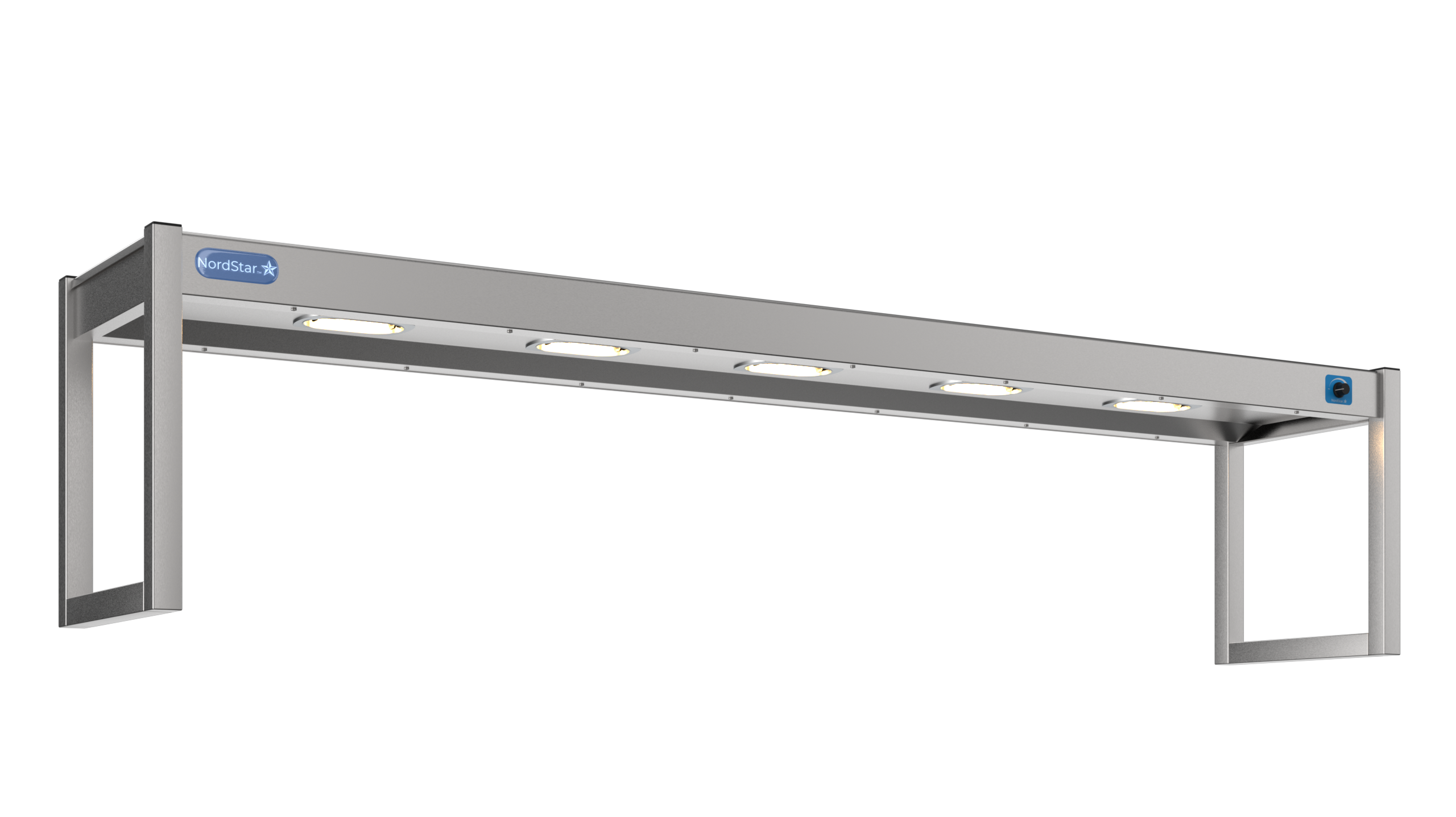

Single tier Gantry features 5 x heated lamps, easy to use dimmer switch and will keep counter top food warm ready for service.

It is ideal for keeping food warm / plated meals or being used as a plate warmer.
