Triple Tier Gantry and Pass Through Hot Cupboard 1500



this is the nordstar delivery time


Part Number: TTC1500P

Cupboard Sizing
Length: 1500mm                    Depth: 700mm                  Height: 900mm

Gantry Sizing
Length: 1500mm                    Depth: 300mm                  Height: 975mm

Bulbs: 12                                   Plugs: 3 x 13 AMP            Heat Range: 30 – 110C

CONSTRUCTION: 430 grade, 18 gauge chassis, Fully Tig welded, laser cut light control panel, box section frame, 16 gauge 304 top, fully insulated chassis and doors, lift
out sliding doors.

ELECTRICAL SPEC: 240v 1pH, 3 x 13amp plug , 3000w element 1 x switched variable thermostat, 1 x heating light, 1 x temperature achieved light, 1 x light indicated on
off switch, 3m of cable.

WARRANTY: 1 Year UK Warranty, All Parts Covered for 12 months, Labour and call out covered for 3 months at maximum of £60. For Technical information or
trouble shooting

SKU: TTC1500P Category:

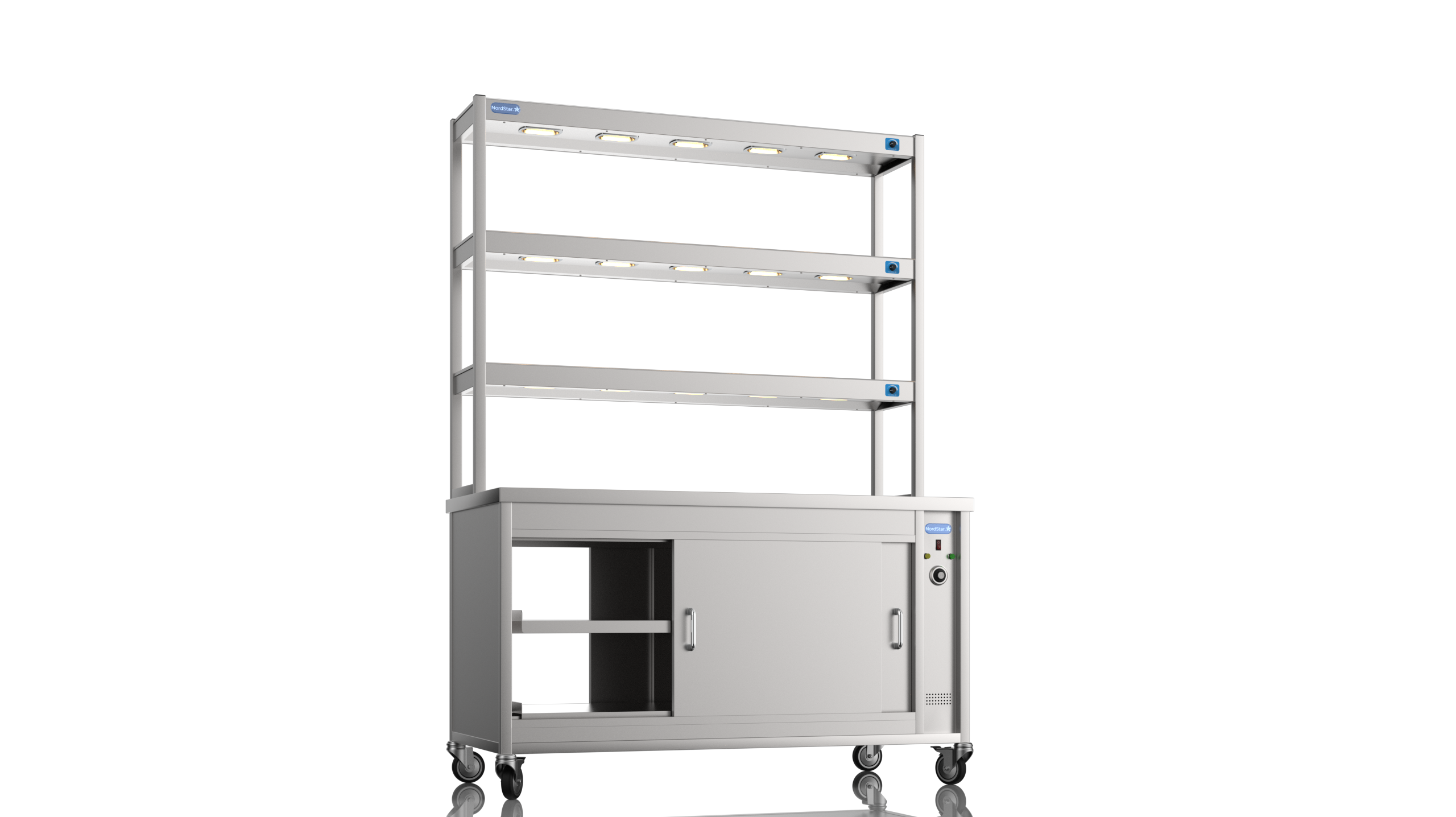

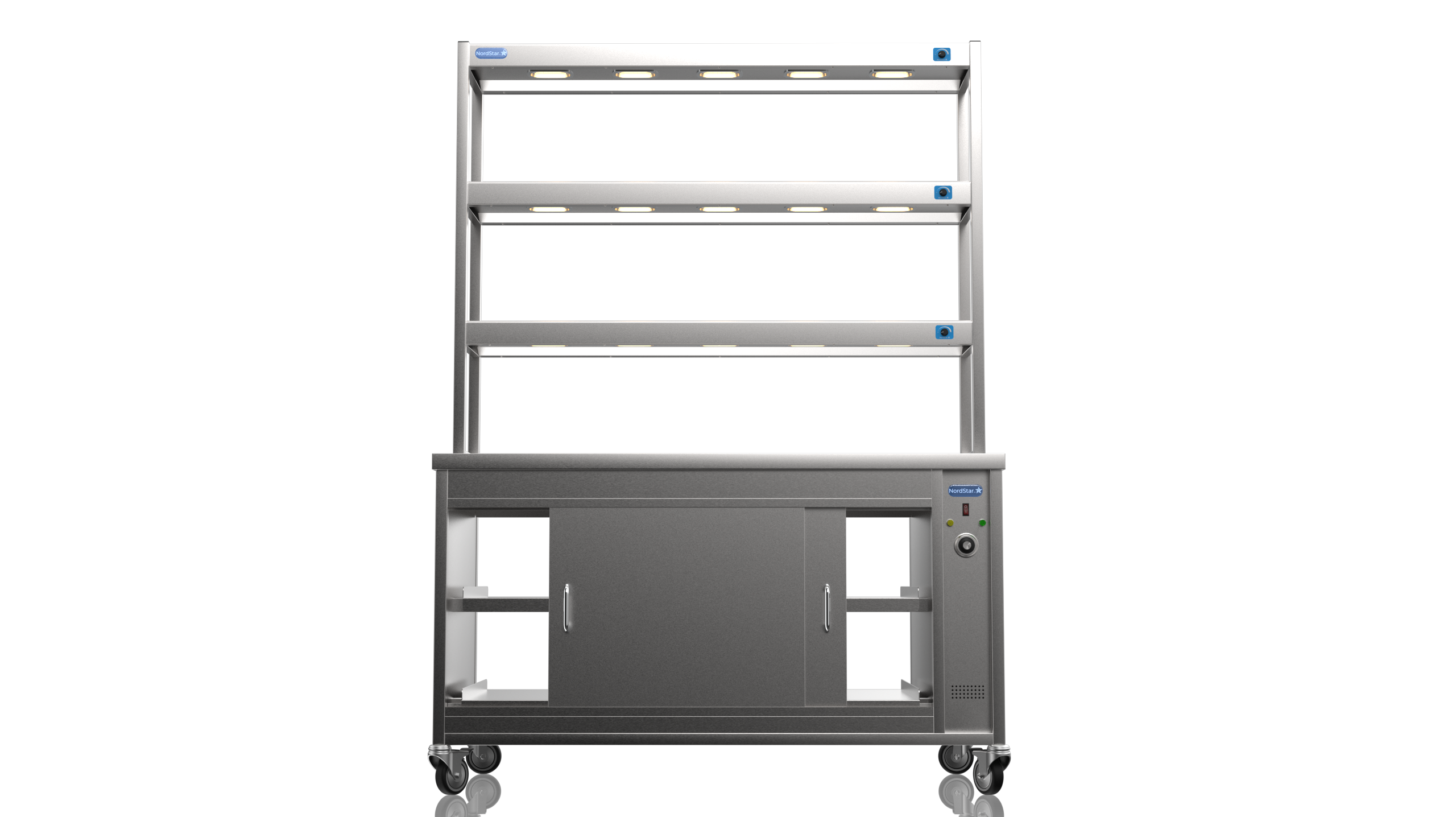

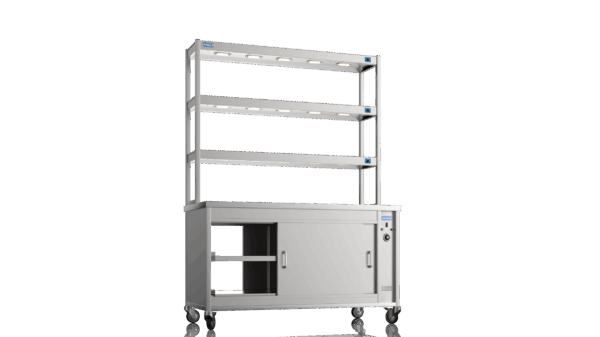

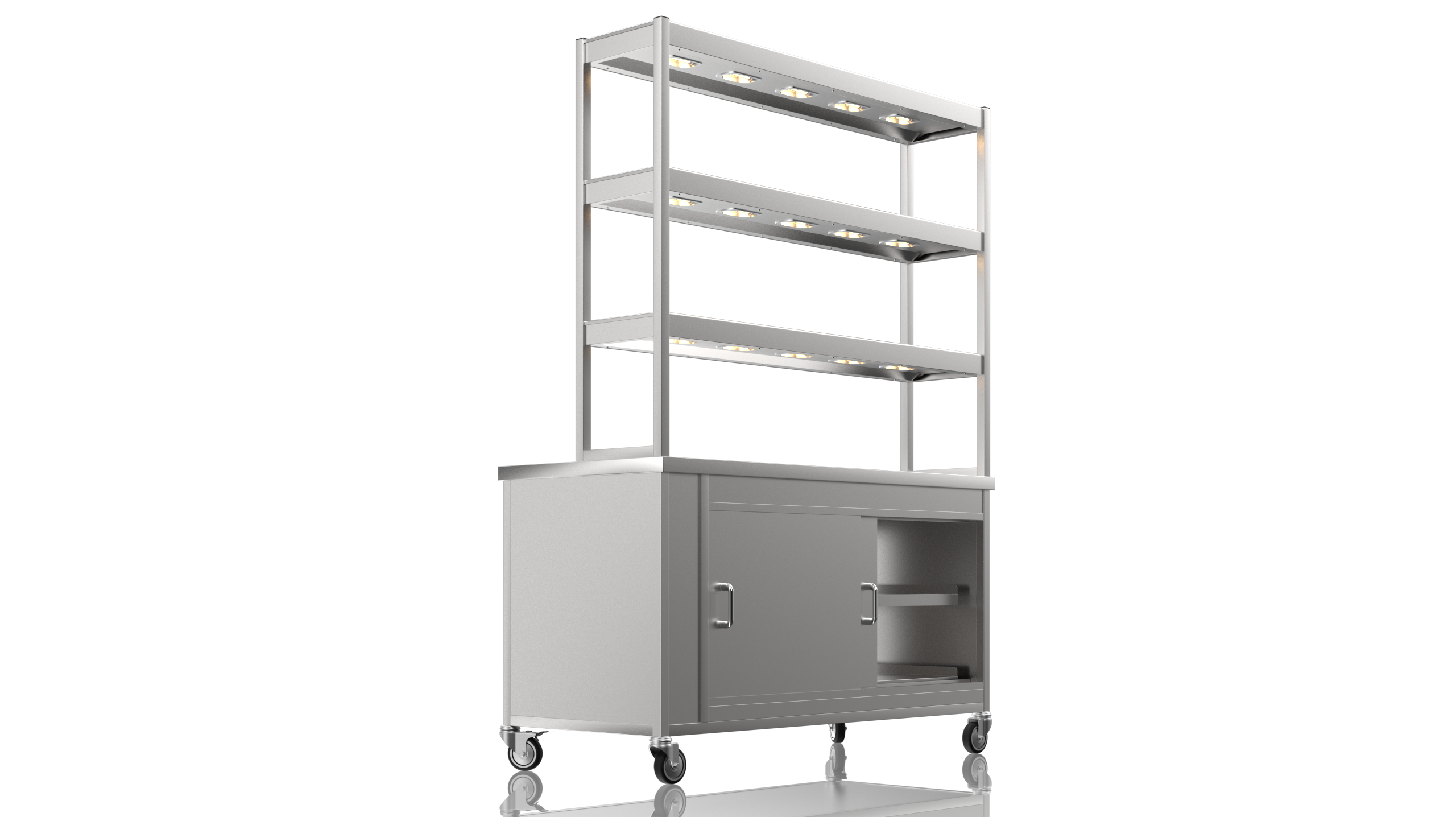

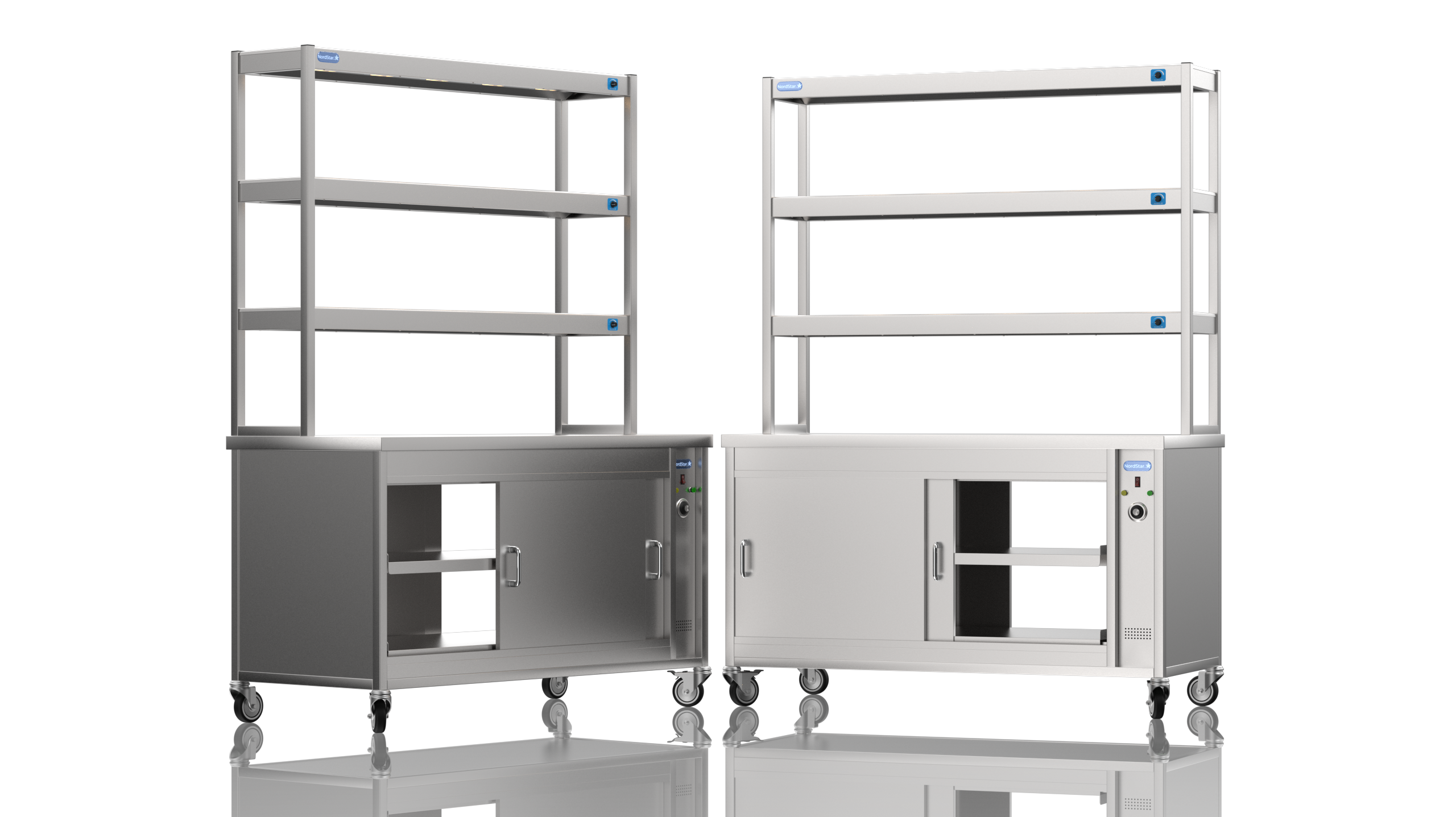

The Nordstar 3 Tier Gantry and Pass-though Hot Cupboard Combo 1500

Nord Star Pass-through Hot Cupboard with three Tier Gantry

Hot Cupboard is a high quality, reliable appliance, ideal for care homes, restaurants and canteens. Constructed with easy to clean stainless steel, contents are kept at warm and hygienic temperatures due to its fully insulated panels,  easily accessible using our own sliding door system both sides. Perfect for confined spaces such as hallways and corridors. This Combination of Hot Cupboard and Gantry is commonly used as a Chefs Pass/ Chefs Hot Pass

Hot Cupboard Features a large holding capacity, indicator lights so see when the cupboard is up to temperature, easy function thermostat and on/off button

three tier Gantry features 12 x heated lamps, easy to use dimmer switches and will keep counter top food warm ready for service.

It is ideal for keeping food warm / high capacity for plated meals or being used as a plate warmer.


Also Knows as:

Heated Cupboard

Plate Warmer

Chefs Pass

Heated Plater Warmer

Hot Food Holding Unit

Sliding Door Hot Cupboard

Prep Top Hot Cupboard

Prep Top Heated Cupboard

3 Level Hot Lights and Heated Cupboard
